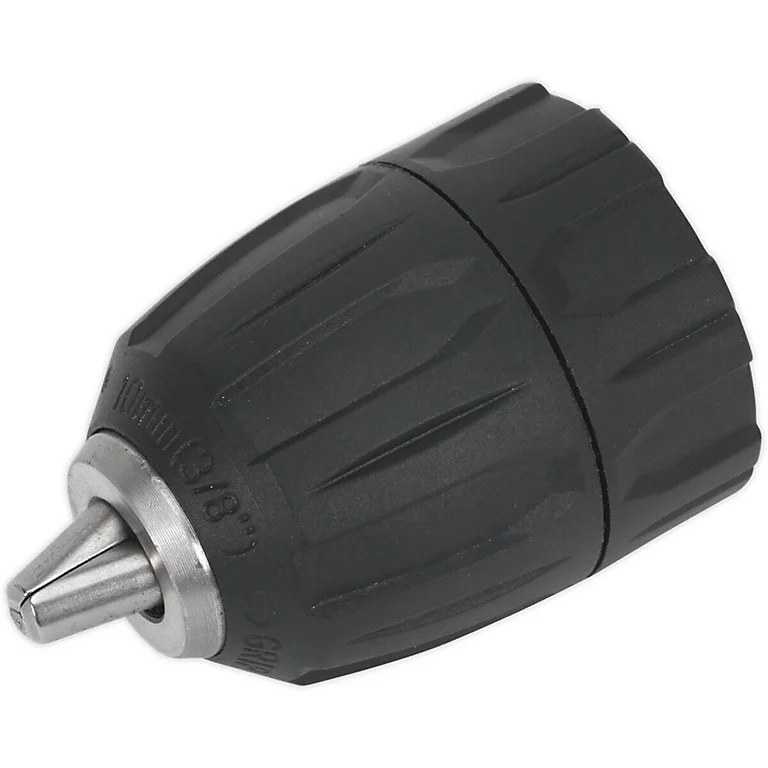

KEYLESS DRILL CHUCK 10MM
| Specification | Details |
| Capacity | 0.3–10 mm (1/64" to 3/8") drill bits/shank diameter |
| Mounting Type | Threaded (JT1, JT2, or 1/4"-28NEF/3/8"-24NEF) or tapered shank (e.g., Morse Taper #2) |
| Tightening Mechanism | Keyless (self-tightening with rotation; manual sleeve for release) |
| Sleeve Type | Ratcheting or friction (anti-slip) |
| Max RPM | 2500 RPM (suitable for corded/cordless drills) |
| Body Material | Steel or hardened alloy (black oxide finish for corrosion resistance) |
| Sleeve Material | Zinc alloy or plastic (ergonomic grip) |
| Accuracy | 0.15 mm T.I.R. (Total Indicator Reading) at full capacity |
| Weight | Approx. 150–200 g (0.33–0.44 lb) |
| Dimensions | Length: 50–60 mm; Diameter: 43–50 mm (at sleeve) |
| Torque Capacity | Up to 50 Nm (holds bits securely under load) |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Other Features | One-handed operation, vibration-resistant, compatible with 3/8" or 1/2" drill spindles, includes set screw for mounting |
