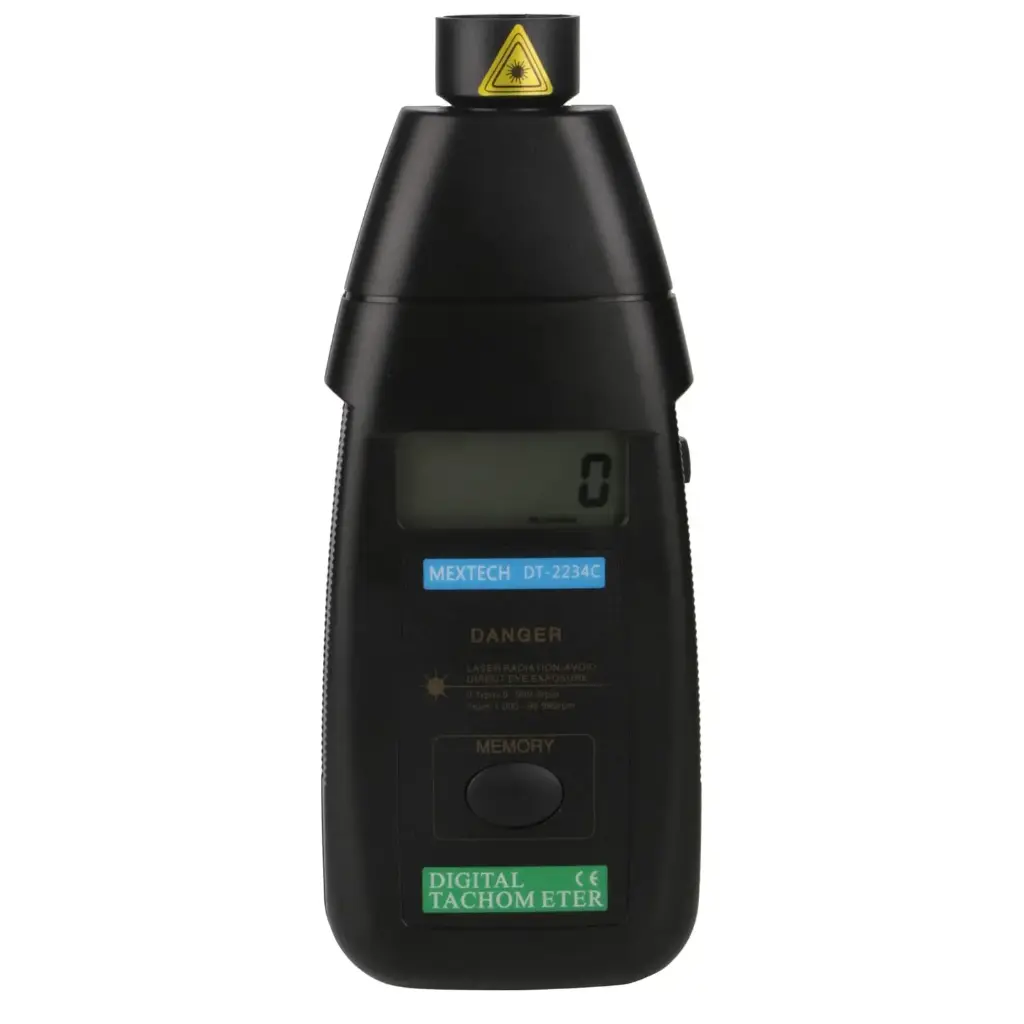

DIGITAL TACHOMETER (DT-2234C)

The DT-2234C Digital Tachometer is a high-precision, handheld instrument designed for measuring the rotational speed of machines and equipment without physical contact. Widely used in mechanical maintenance, automotive service, HVAC, and industrial applications, this tachometer ensures accurate and reliable RPM measurements with ease.

✅ Key Features:

• Non-contact RPM measurement using a laser beam & reflective tape.

• Wide measuring range with high accuracy.

• Digital LCD display with large, easy-to-read digits.

• Memory function stores the last, maximum, and minimum readings.

• Durable and lightweight design for handheld use.

• Energy efficient with low battery consumption.

⚙️ Specifications:

• Model: DT-2234C

• Type: Non-Contact Digital Tachometer

• Measuring Range: 2.5 – 99,999 RPM

• Resolution: 0.1 RPM (2.5 – 999.9 RPM), 1 RPM (above 1000 RPM)

• Accuracy: ±(0.05% + 1 digit)

• Detection Distance: 50 – 500 mm

• Display: Large 5-digit LCD display

• Sampling Time: 0.8 sec (over 60 RPM)

• Power Supply: 3 × 1.5V AA batteries

• Operating Temperature: 0 – 50°C

• Storage Temperature: -10 – 60°C

• Weight: Approx. 200g (including battery)

• Material: ABS Plastic

• Standard Accessories: Reflective tape, carrying pouch, user manual

📌 Applications:

• Automotive industry (engine RPM, rotating shafts, fans).

• Industrial machinery maintenance.

• HVAC systems (motors, blowers).

• Research and lab testing.

• Quality control and inspection.
