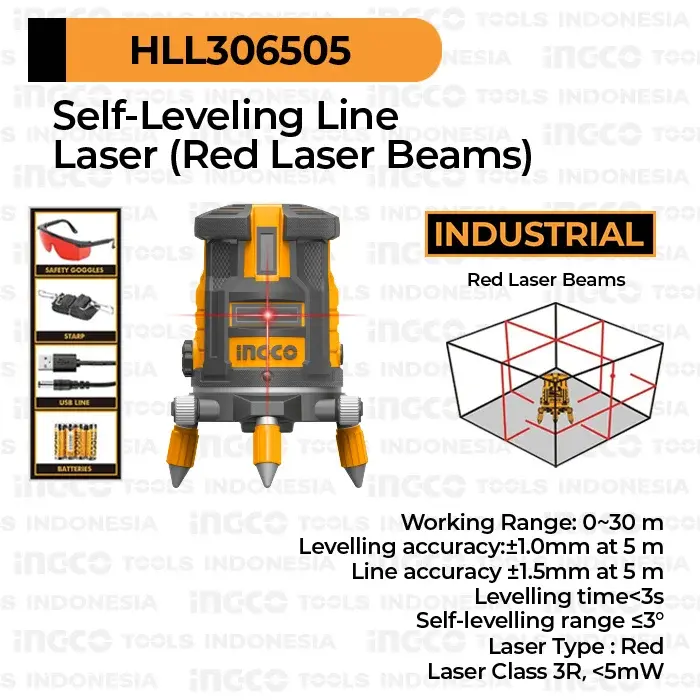

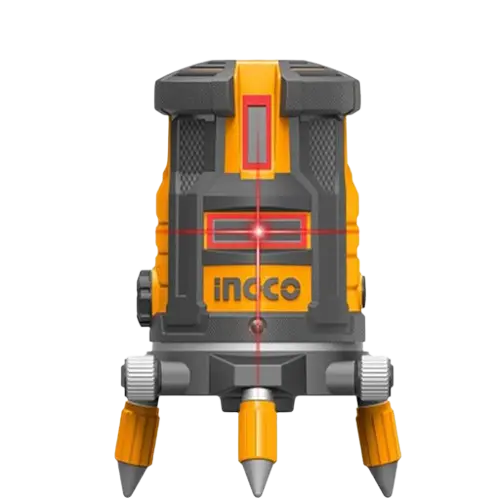

SELF LEVELING LASER 30 MTR INGCO (HLL306505)
The INGCO HLL306505 is a compact, professional-grade self-leveling line laser designed for precise horizontal and vertical alignment in construction, tiling, carpentry, electrical installations, and DIY projects. Featuring 1 horizontal and 4 vertical red laser lines, it projects clear reference lines up to 30m for accurate leveling without manual adjustments. Its cross-lock function allows manual override for sloped surfaces, while the laser gain enhances visibility in brighter conditions. Powered by standard AA batteries, it's portable and reliable for indoor/outdoor use, making it a versatile tool for contractors, builders, and homeowners.
Key Features
- Self-Leveling Mechanism: Automatically levels within ≤3° in under 3 seconds; audible alarm if beyond range for error-free setup.

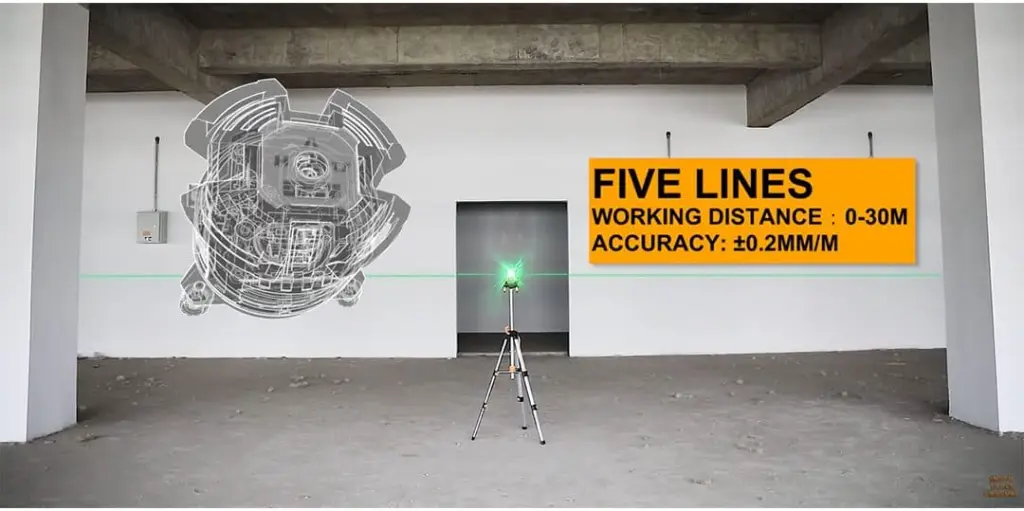

- Multi-Line Projection: 1 x 360° horizontal line + 4 vertical lines for full-room coverage and plumb alignment.
- Cross-Lock Function: Locks lines for angled or sloped applications like stairs or ramps.
- Laser Gain Adjustment: Boosts beam intensity for better visibility over distances or in varying light.
- Tripod Compatibility: Mounts on standard 1/4" tripods (e.g., INGCO HLLT01152, sold separately) for elevated positioning.
- Durability: Robust housing with IP54 rating for dust/water resistance; operates in temperatures from 0–40°C.
Specifications
| Specification | Details |
| Model | HLL306505 |
| Laser Type | Red Beam (650 nm) |
| Laser Class | 3R (<5 mW) or II (<1 mW, variant-dependent) |
| Lines Projected | 1 Horizontal + 4 Vertical |
| Working Range | 0–30 m (indoor/outdoor) |
| Levelling Accuracy | ±1.0 mm at 5 m |
| Line Accuracy | ±1.5 mm at 5 m |
| Self-Leveling Range | ≤3° |
| Leveling Time | <3 seconds |
| Power Source | 4 x AA (LR6, 1.5V) Batteries |
| Weight (Without Batteries) | 980 g |
| Operating Temp | 0–40°C |
| Storage Temp | -20–70°C |

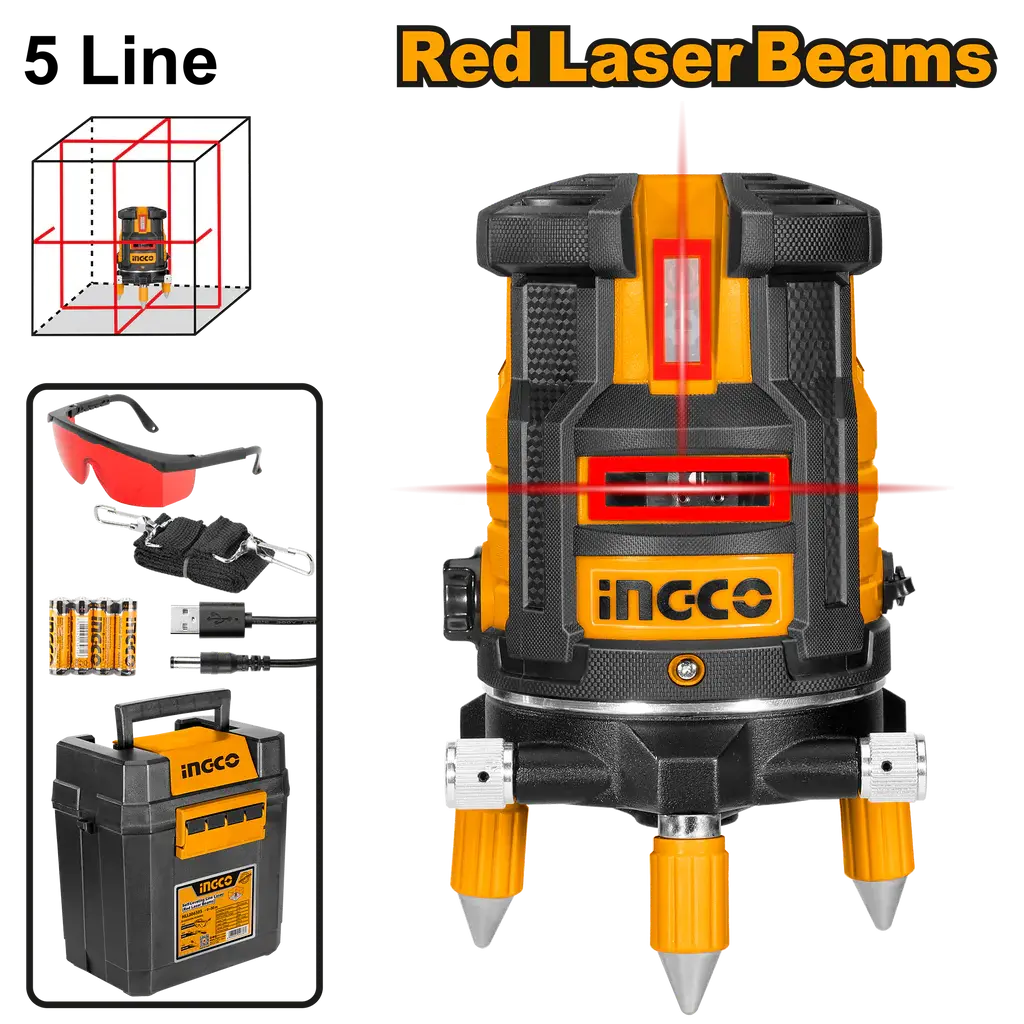

What's Included
- 1 x INGCO HLL306505 Self-Leveling Line Laser.
- 1 x Safety Goggles (laser protection).
- 1 x Laser Target Plate (for enhanced visibility).
- 4 x AA Batteries.
- Packed in a durable plastic carrying box for easy storage and transport (tripod sold separately).
