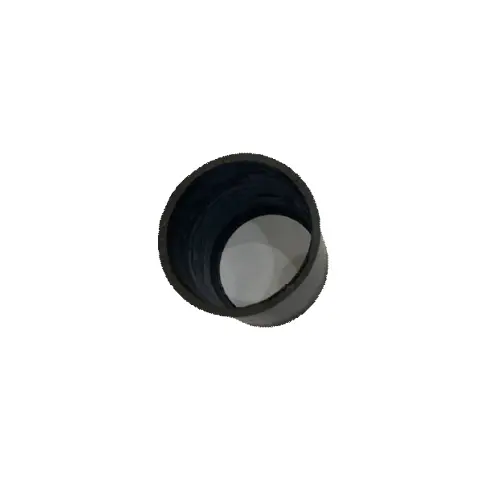

SP-22 CYLINDER INGCO (RH150028) D-59

SP-22 CYLINDER INGCO (RH150028) D-59

https://www.megatoolmall.com/web/image/product.template/96478/image_1920?unique=7b48bea
Part Code: SP‑22
Part Name: Cylinder
Tool Model: INGCO RH150028 — 1500 W Rotary Hammer
Diagram Reference: D‑59 (position in the internal exploded view)

🧰 What It Is

The cylinder in a rotary hammer is a precision‑machined metal sleeve that forms the chamber in which the hammer piston operates. In tools like the INGCO RH150028, the hammer mechanism relies on a piston moving back and forth rapidly inside this cylinder to generate the impact blows that give the hammer its drilling/chiseling power.

⚙️ Technical Function

The SP‑22 Cylinder serves these key mechanical roles:

1. Pneumatic Impact Chamber

  • The piston moves inside the cylinder and compresses air to create powerful percussive force.

  • This compressed air drives the hammer blow that advances the drill bit into hard materials like concrete and masonry.

2. Guiding the Piston

  • The inner surface of the cylinder is precisely finished to guide the hammer piston with minimal friction.

  • Accurate fit between piston and cylinder ensures efficient energy transfer and longer life.

3. Sealing & Pressure Maintenance

  • Works with seals and rings to maintain air pressure in the chamber.

  • A properly sealed cylinder maximizes impact force and reduces energy loss.

₹ 144.20 144.2 INR ₹ 144.20 ₹ 238.00

₹ 140.00 ₹ 238.00

Not Available For Sale
