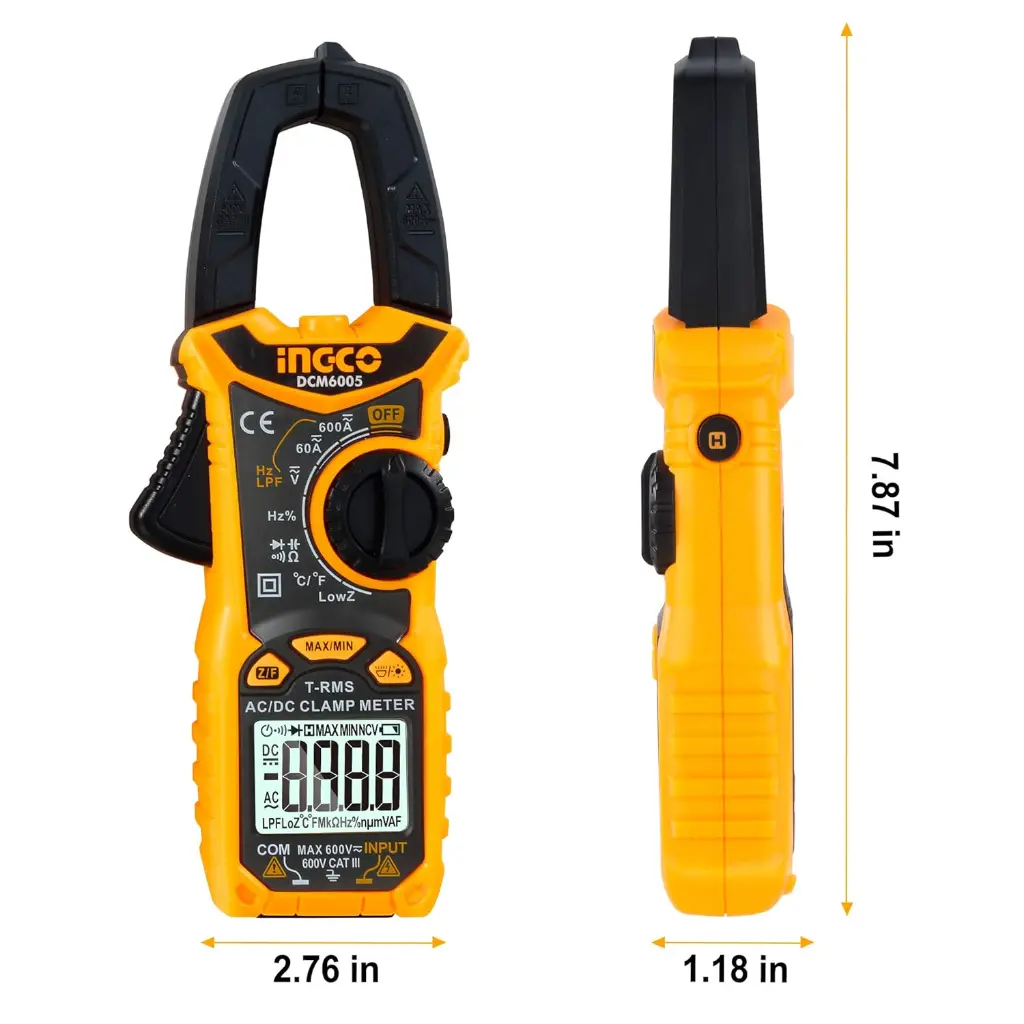

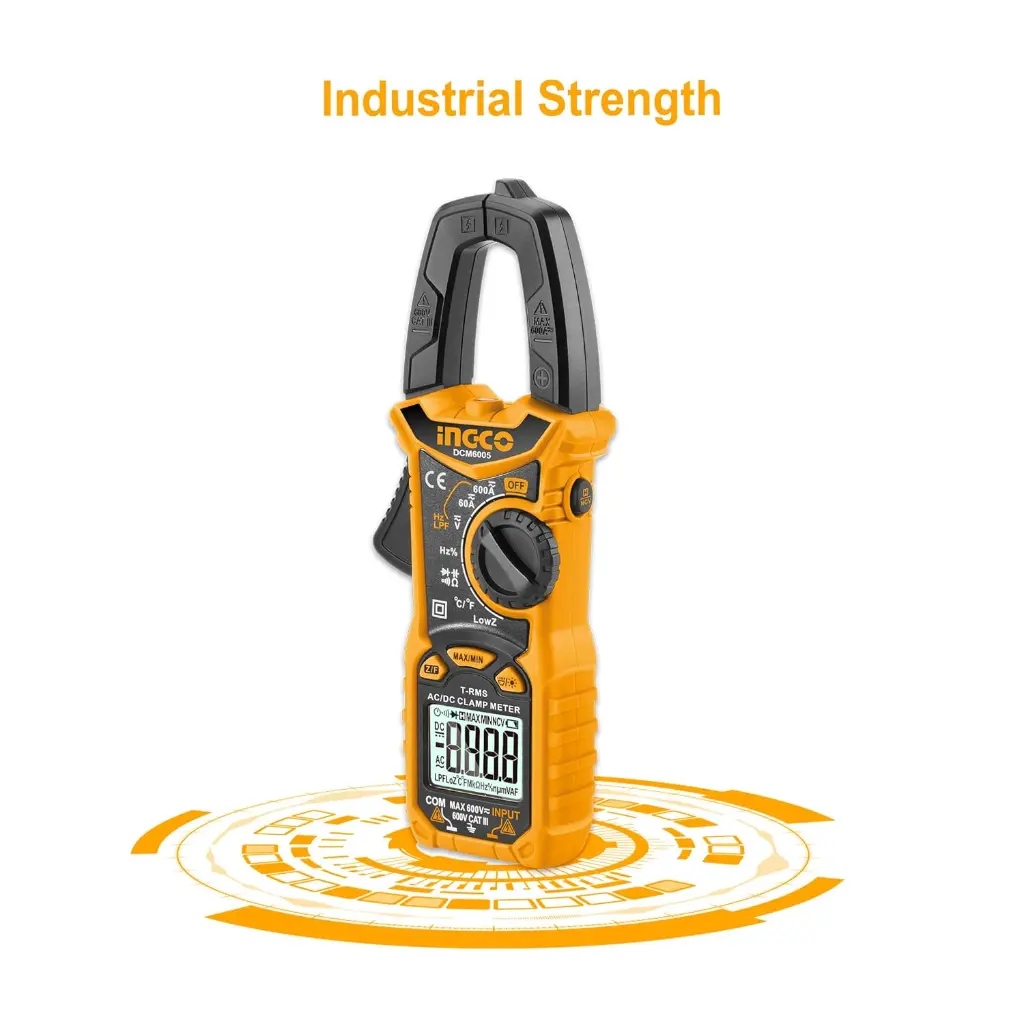

DC/AC CLAMP METER 600A (DCM6005)
- The DC/AC Clamp Meter DCM6005 is a versatile digital measuring instrument designed for electricians and technicians to measure current, voltage, and resistance safely without disconnecting the circuit. With a 600A clamp range, it is suitable for both DC and AC applications and provides accurate, reliable readings for residential, commercial, and industrial electrical work.
- Technical Specifications
Measures AC & DC Current: Clamp range up to 600 A without breaking the circuit.
Multifunctional: Measures voltage, resistance, and continuity in addition to current.
Digital Display: Easy-to-read LCD with backlight for low-light conditions.
Data Hold Function: Freeze readings for convenience during testing.
Safe & Ergonomic: Insulated jaws, compact design, and comfortable grip for field use.
Auto Power Off: Conserves battery life when not in use.
Ensure the meter is set to the correct measurement mode before testing.
Do not exceed the specified maximum current or voltage ratings.
Clamp the meter jaws fully around a single conductor for accurate current readings.
Use personal protective equipment (PPE) while testing live circuits.
Replace batteries promptly to maintain accuracy and display clarity.
| Parameter | Value / Description |
| Brand / Model | DCM6005 |
| Type | Digital Clamp Meter |
| Current Measurement | DC / AC up to 600 A |
| Voltage Measurement | DC / AC up to 600 V |
| Resistance Measurement | 0 – 60 kΩ |
| Continuity Test | Yes (audible buzzer) |
| Display | Digital LCD with backlight |
| Accuracy | ±1.5% (typical) |
| Jaw Opening | 30–35 mm (approx.) |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Power Supply | 2 × AAA batteries (or as per model) |
| Applications | Electrical troubleshooting, maintenance, and testing in DC and AC circuits |
| Safety Rating | CAT III 600V / CAT II 1000V (typical for residential & industrial use) |
| Weight | ~300–400 g |
| Construction | Compact, ergonomic housing with insulated jaws and rubberized grip |
