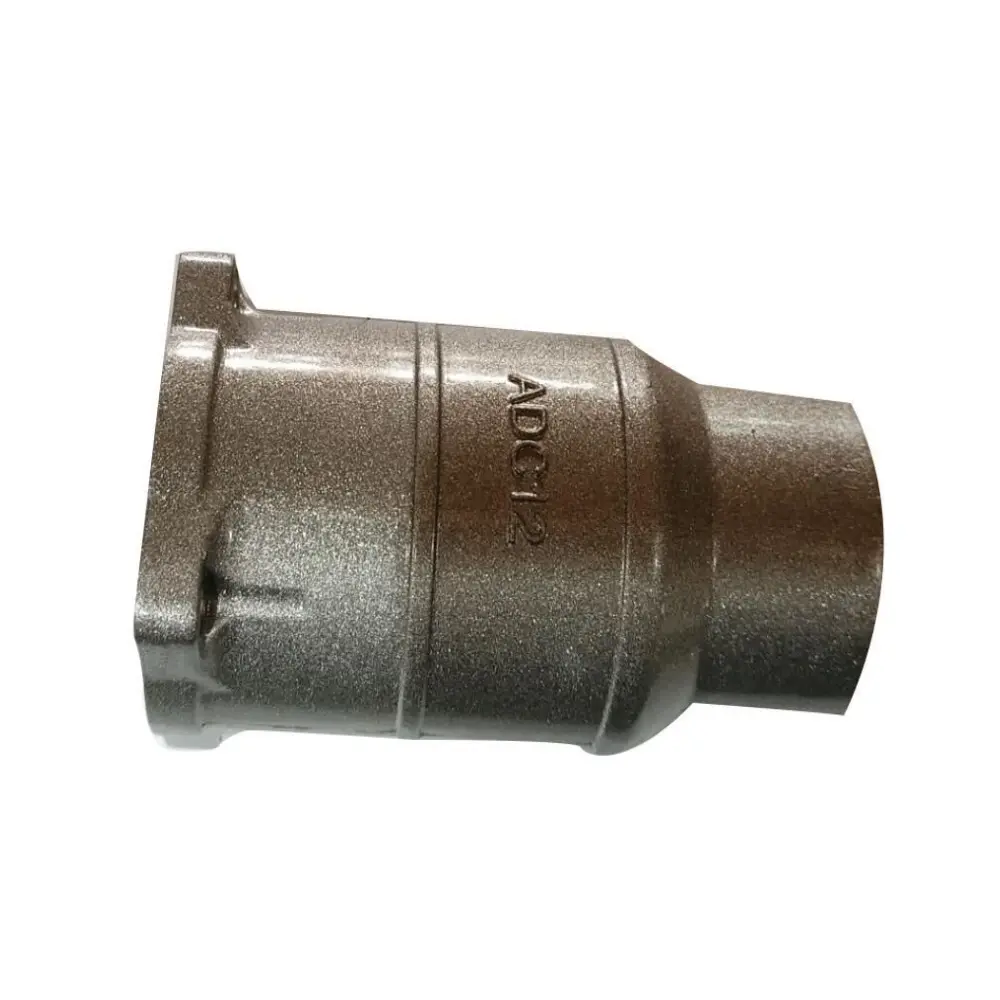

SP-8 CYLINDER HOUSE INGCO (RH150028) D-57

SP-8 CYLINDER HOUSE INGCO (RH150028) D-57

https://www.megatoolmall.com/web/image/product.template/96952/image_1920?unique=222dcb3
Part Code: SP‑8
Part Name: Cylinder House (Housing for Cylinder Assembly)
Tool Model: INGCO RH150028 — 1500 W Rotary Hammer
Diagram Reference: D‑57

🧰 What It Is

The Cylinder House is the structural housing or casing that supports and encloses the cylinder (impact chamber) and related components within the rotary hammer’s internal mechanism. In a rotary hammer, the impact chamber is where the piston moves back and forth to generate percussive force — and the cylinder house provides a rigid support structure for these dynamic parts.

The Cylinder House may also be called the impact chamber housing, cylinder cover, or piston chamber housing in some diagrams.

⚙️ Technical Function

The SP‑8 Cylinder House serves several key roles:

1. Structural Support

  • Surrounds and secures the cylinder (SP‑22) and keeps it aligned with the piston and crank mechanism.

  • Maintains correct spacing and alignment under heavy hammering loads.

2. Mechanical Protection

  • Protects internal parts like the piston, cylinder, seals, springs, and related rings from dust, debris, and physical damage.

  • Keeps critical moving parts enclosed so debris from drilling does not interfere with operation.

3. Guiding and Sealing Surface

  • Provides fixed mounting points and guide surfaces for pistons or rods.

  • Works with seals and O‑rings to maintain internal air pressure and reduce leakage in the impact chamber.

4. Load Distribution

  • Distributes forces generated by the hammer action across the tool’s internal structure, helping resist deformation and wear.

₹ 412.00 412.0 INR ₹ 412.00 ₹ 680.00

₹ 400.00 ₹ 680.00

Not Available For Sale
