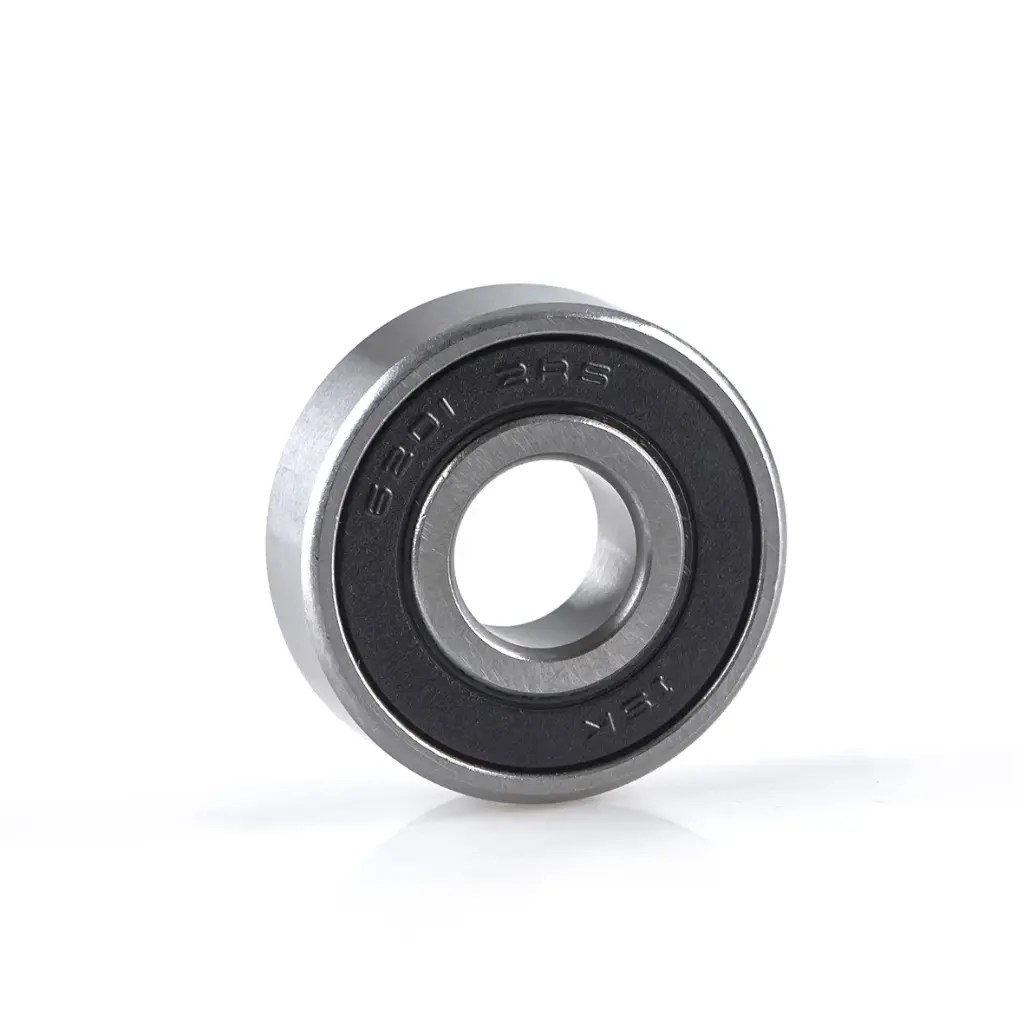

TATA BEARING 6201 2RS
| Parameter | Value | Description |
| Bearing Type | Single-Row Deep Groove Ball Bearing | Versatile, low friction, and capable of high rotational speeds. |
| Bore Diameter (Inner, $d$) | 12 mm | The diameter of the shaft the bearing fits onto. |
| Outer Diameter (Outer, $D$) | 32 mm | The diameter of the housing the bearing fits into. |
| Width (Thickness, $B$) | 10 mm | The axial width of the bearing. |
| Basic Dynamic Load Rating ($C_r$) | $\approx 6.8 \text{ to } 7.3 \text{ kN}$ | Maximum load the bearing can endure while rotating for a specified life. |
| Basic Static Load Rating ($C_{0r}$) | $\approx 3.0 \text{ to } 3.1 \text{ kN}$ | Maximum load the bearing can support when stationary. |
| Material | High Carbon Chrome Steel (SAE 52100) | Standard high-quality bearing steel. |
| Approx. Weight | $\approx 37 \text{ grams}$ |
