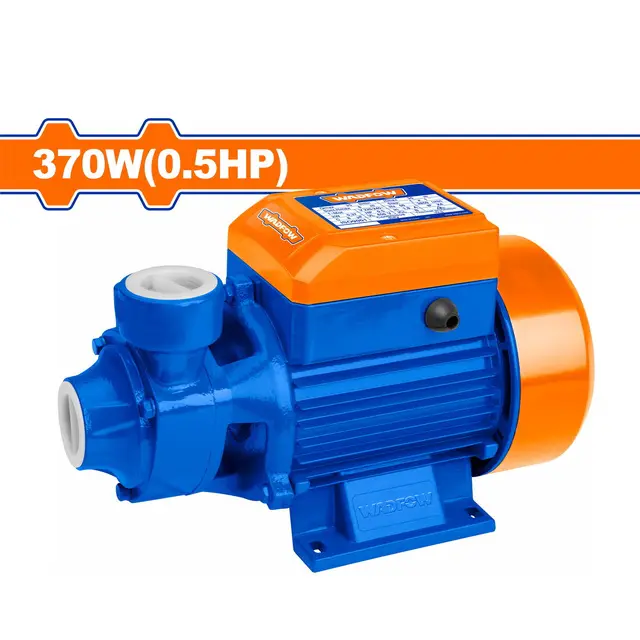

WATER PUMP 0.5 HP 370W WADFOW (WWPVA01)

Model Number: WWPVA01 (Sometimes seen as WWPVA01-5, which typically refers to the same model)

Pump Type: Peripheral Pump

Peripheral pumps are known for their ability to generate relatively high head (pressure) even at lower flow rates, making them suitable for boosting pressure in residential settings or transferring water over moderate vertical distances.

Voltage: 220-240V~50Hz

This is the standard voltage and frequency in India, so it will operate directly without any conversion.

Rated Power: 370W (0.5HP)

This is the electrical power consumed by the motor. 0.5 horsepower indicates it's a small to medium-duty pump.

Max. Head: 30m

This is the maximum vertical height the pump can lift water. A 30-meter head is sufficient for pumping water to overhead tanks in most single or double-story residential buildings.

Max. Flow: 30L/min

This is the maximum volume of water the pump can deliver per minute under ideal conditions (e.g., at very low head). 30 liters per minute is equivalent to 1800 liters per hour, which is a good flow rate for general household use like filling tanks, watering gardens, or serving a few water outlets simultaneously.

Max. Suction: 8m

This specifies the maximum vertical distance from which the pump can draw water up from a source (e.g., a borewell, sump, or tank). For optimal performance, the water level should be within 8 meters of the pump's inlet.

Pipe Diameter: 1" x 1"

Both the inlet and outlet ports of the pump are 1 inch in diameter. This is a very common pipe size for domestic water systems in India.

Motor Type: Aluminum wire motor

The motor windings are made of aluminum. While copper is generally considered superior for conductivity and durability, aluminum is a more cost-effective material and is common in pumps of this size for light to moderate use.

Impeller Material: Brass impeller

The impeller, the rotating part that moves the water, is made of brass. Brass impellers are highly resistant to corrosion and wear, especially when pumping clean water, contributing to the pump's durability and longevity.

Cable Length: 0.3m

This is a very short power cable (approximately 1 foot). You will almost certainly need to extend this cable with an appropriate, safe, and properly insulated electrical wire to reach your power source. Ensure the extension cable's gauge is sufficient for the pump's power to prevent overheating and voltage drop.

Packaging: Packed by Carton box
